WB EXT-DWAL 1650 Series

Exterior Facade Access Door Offers Fully Concealed Installation!

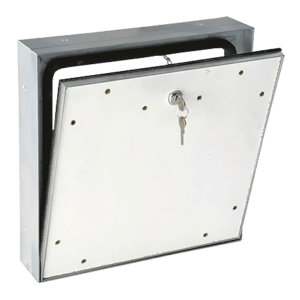

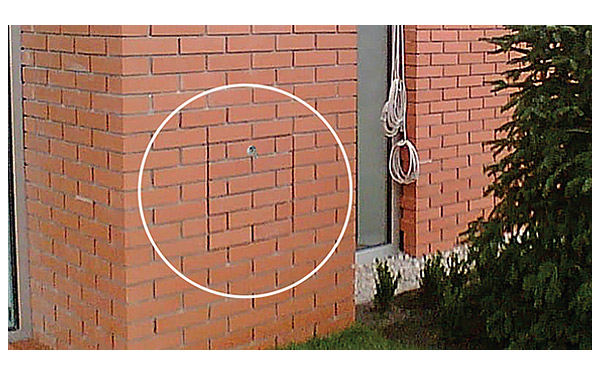

The WB EXT-DWAL 1650 Series Frameless Watertight Exterior Facade Access Door is a durable, flush access panel designed for installation in walls and ceilings in exterior applications where both a concealed appearance and prevention of water penetration are required. Featuring lightweight, corrosion resistant aluminum construction with a mill finish and a fully removable panel, door is shipped complete with a 5/8″ cement board panel pre-installed. In addition, with its frameless design, door is perfect for exterior facade surfaces such as brick, stone or tile where matching the door panel to its surroundings is desired. Once installed, the only thing visible is a 1/8″ gap.

Specifications

• Door: Fully Detachable, Corrosion Resistant Welded Aluminum Frame with 5/8″ Cement Board
• Frame & Trim: Corrosion Resistant Welded Aluminum
• Finish: Mill Finish
• Locks: Cylinder Lock (keyed alike with 2 keys per lock)
• Hinges: Concealed Open Pin Hinges (access doors are equipped with a safety-system to prevent accidental opening – must be reattached after each opening)
• Gasket: Continuous Bulb Trim Gasket
• Application: Walls, Ceilings, Exterior Use

Options

• Custom Sizes: Available on Request

Description

The WB EXT-DWAL 1650 exterior access panel is available in a variety of sizes including 8×8, 12×12, 14×14, 18×18, 24×24 and more. In addition, custom sizes are available upon request. Door features a frameless design with watertight gasket, fully removable cement board panel and a keyed cylinder lock for security. In addition, a safety cable is included to prevent accidental opening.

Manufactured for The Williams Brothers Corporation of America.
