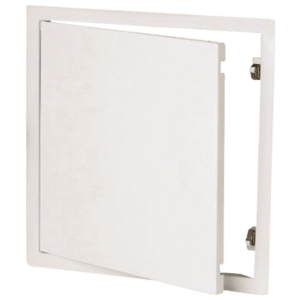

WB B2 Series

Economical Access Panel Offers Easy, Push to Open Access!

The WB B2 Series Touch Latch Access Panel with No Cam Latches is a cost-effective, general purpose flush access door for wall and ceiling installation that offers easy, push to open access with no tool, key, or handle required to open it. Featuring 20 gauge galvanized steel construction with a white baked, paintable enamel finish, the panel’s formed door provides strength and rigidity while four riveted stud anchors ensure a quick installation. The steel frame with a rounded profile flange provides a smooth transition to almost any installation surface. In addition, the door is suitable for left- or right-hand operation.

Specifications

• Door: 20 Gauge Steel
• Frame & Trim: 20 Gauge Steel, 1″ Wide Flange
• Finish: Baked White Enamel, Paintable Surface
• Latches: Heavy-duty, Concealed Touch Latches
• Hinges: Fully-concealed Hinge
• Applications: Walls, Ceilings

Options

• Finishes: Stainless Steel, Custom Colors

Description

The WB B2 metal access panel comes standard in sizes 8×8, 12×12, 14×14, 16×16, 20×20, and 24×24. Door features a fully-concealed hinge, two concealed touch latches, and an exposed flange. Options include stainless steel construction and custom colors. Offering a seamless finish with lack of noticeability, door is a perfect solution for applications where cam latches do not want to be shown.

Manufactured by The Williams Brothers Corporation of America. MADE IN VIRGINIA – USA.
