WB RP 110 Series

Premium Access Panel with a Removable Door – No Swing Out Necessary!

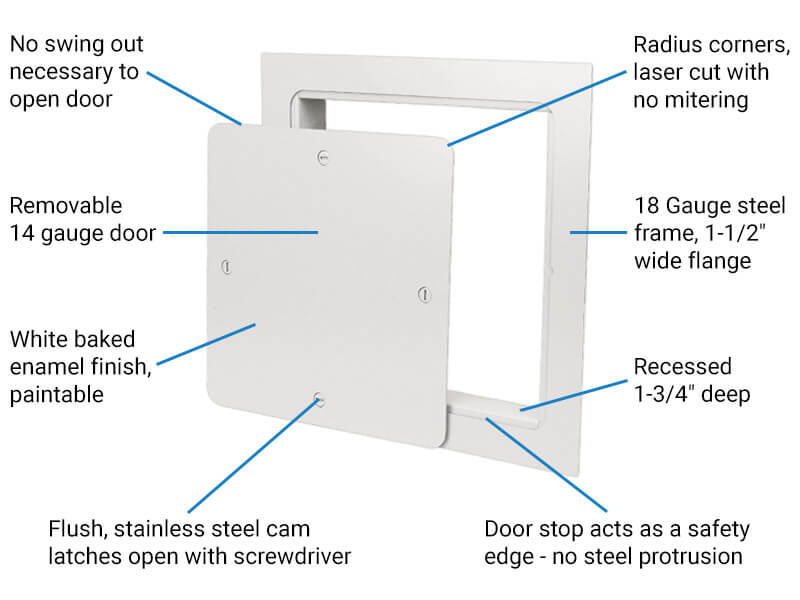

The WB RP 110 Series Premium Access Panel with Removable Door is a durable, general purpose flush access panel for wall and ceiling installation that is designed for use in confined areas where a normal access door cannot swing out. Simply unscrew the cam latches, and the door can easily be removed with absolutely no swing out necessary. Featuring a heavy-duty, 14 gauge steel door and a white baked, paintable enamel finish, door is laser cut from one sheet of cold rolled steel with no corner mitering to improve visual aesthetics.

Specifications

• Door: 14 Gauge Steel with Radius Corners
• Frame & Trim: 18 Gauge Steel, 1-1/2″ Wide Flange
• Finish: White Baked Enamel, Paintable Surface
• Latches: Flush, Stainless Steel Cam Latches on All 4 Sides (opens with screwdriver)
• Hinges: None, Removable Panel
• Applications: Walls, Ceilings

Options

• Finishes: Stainless Steel, Custom Colors
• Locks: WB Cylinder Lock (keyed alike with 2 keys per lock), Mortise Lock (with or without core)
• Custom Sizes: Available on Request

Features

Description

The WB RP 110 metal access panel is available in a wide variety of sizes including 8×8, 12×12, 14×14, 16×16, 24×24 and more. In addition, custom sizes are available upon request. Door features radius corners, stainless steel cam latches to prevent rust, and an exposed flange. Options include locks plus stainless steel construction and custom colors.

Manufactured by The Williams Brothers Corporation of America. MADE IN VIRGINIA – USA.
