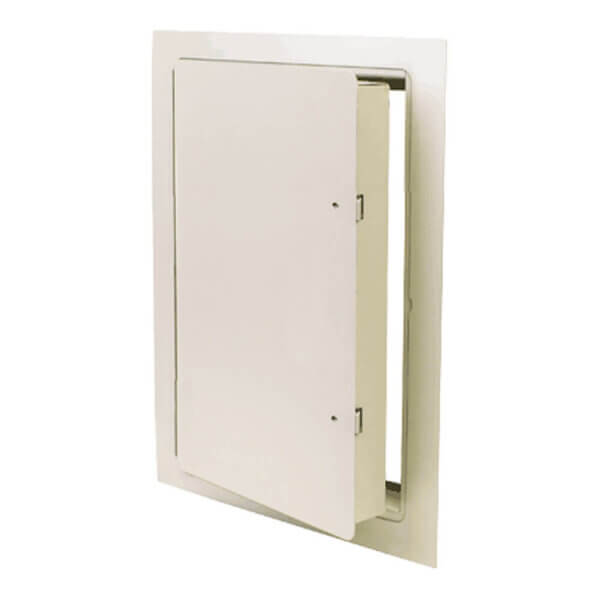

| Model # | WB FR-C 800 22X44 |
|---|---|
| Series | WB FR-C 800 |
| Door Size (WxH) | 22" x 44" |
| Rough Opening (WxH) | 22 1/4" x 44 1/4" |
| Number of Latches | 2 |
| Shipping Weight | 65 lbs. |
| Door | 16 Gauge Steel , 2" Deep |
| Frame & Trim | 16 Gauge Steel, 1-1/2" Wide Flange |
| Finish | White Baked Enamel, Paintable Surface |
| Latches | Self-latching Slam Catch |
| Locks | Flush, Knurled Knob Lock with 1 Key |
| Hinges | Fully-concealed, Pivot-rod Hinge (allows opening to 140°) |
| Insulation | 2" Thick ROXUL™ Mineral Wool |
| Automatic Door Closer | Spring Closer |
| Fire-Rating | Warnock-Hersey Approved for 1 Hour (horizontal installation) – Largest Size Acceptable is 24" x 48" |
| Applications | Ceilings Only |
| Finish Options | Stainless Steel, Custom Colors |
| Lock Options | Mortise Lock (with or without core) |
| Gasket Options | Hot Smoke Seal on All 4 Sides (fire and smoke tested) |
| Custom Sizes | Available on Request |
