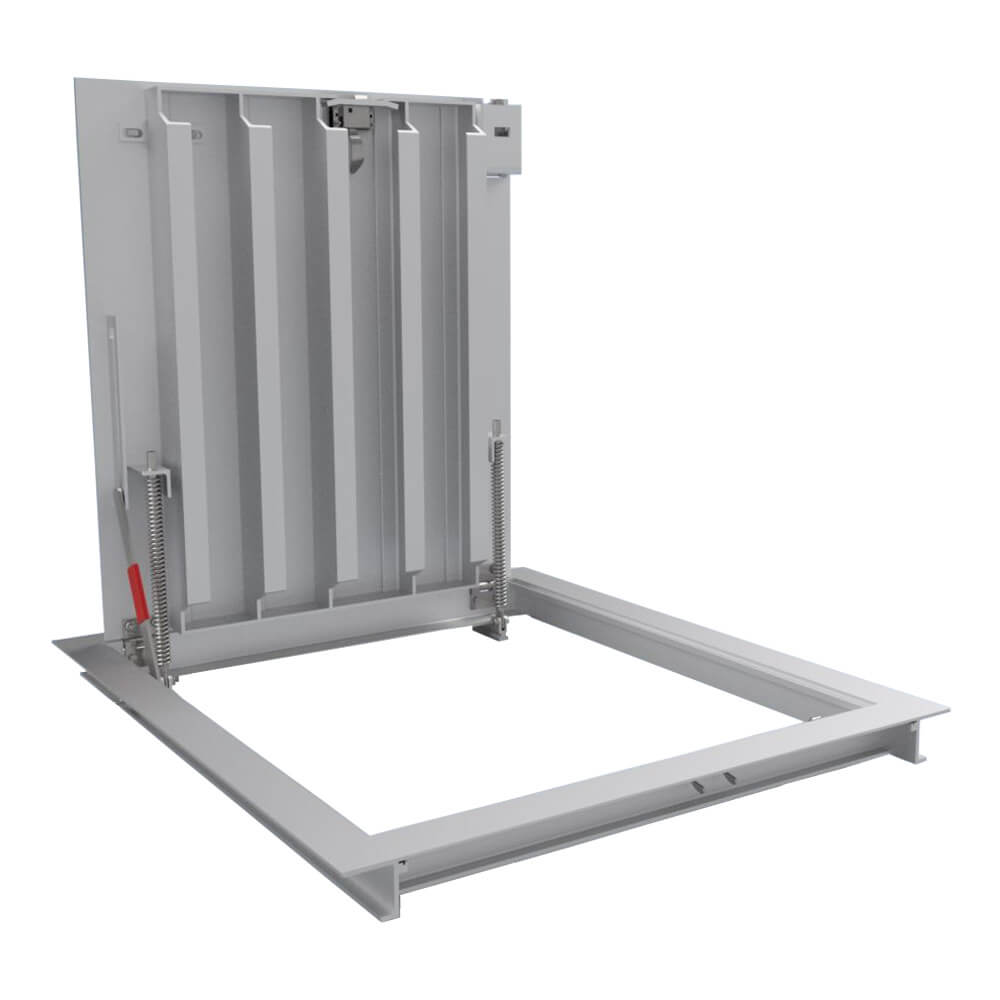

30 x 30 H-20 Loading Aluminum Diamond Plate Floor Hatch – WB APS 8100 Series

WB W-APS 8100 Series H-20 Loading Aluminum Diamond Plate Floor Hatches

$3,066.14

This rugged, flush access door is designed for new or existing openings in both interior and exterior applications in areas where watertightness is not required. Hatch is reinforced to meet AASHTO specifications for an H-20 live load and is ideal for off-street locations that may occasionally receive H-20 wheel loads such as industrial facilities, warehouses, loading docks, parking garages and more. Featuring a heavy-duty, 1/4″ reinforced aluminum cover and extruded aluminum frame, both with a mill finish, hatch is a perfect solution for wherever floor access is needed. MADE IN USA.

Note: A drawing of your exact floor hatch will be supplied upon order for approval.

Model #

WB H-APS 8100 30X30
Series

WB H-APS 8100
Door Size (WxH)

30" x 30"
Rough Opening (WxH)

Contact Factory
Shipping Weight

90 lbs.
Cover

1/4" Reinforced Aluminum Diamond Plate
Frame

Extruded Aluminum with Integral Anchor Flange and Door Seat on All Four Sides
Finish

Mill Finish
Handle

Cast Aluminum Flush Lifting Handle
Lock

None – Includes an Exposed Staple for User-supplied Padlock
Automatic Hold-open Arm

316 Stainless Steel Hold-open Arm with Vinyl Grip That Automatically Keeps the Cover in its Open/Upright Position at 90°
Hardware

316 Stainless Steel Hinges and Tamper Resistant Bolts/Lock Nuts
Loading

AASHTO H-20-44 wheel load
Installation

Styles Available for both New and Existing Openings
Finish Options

Steel
Custom Sizes

Available on Request
